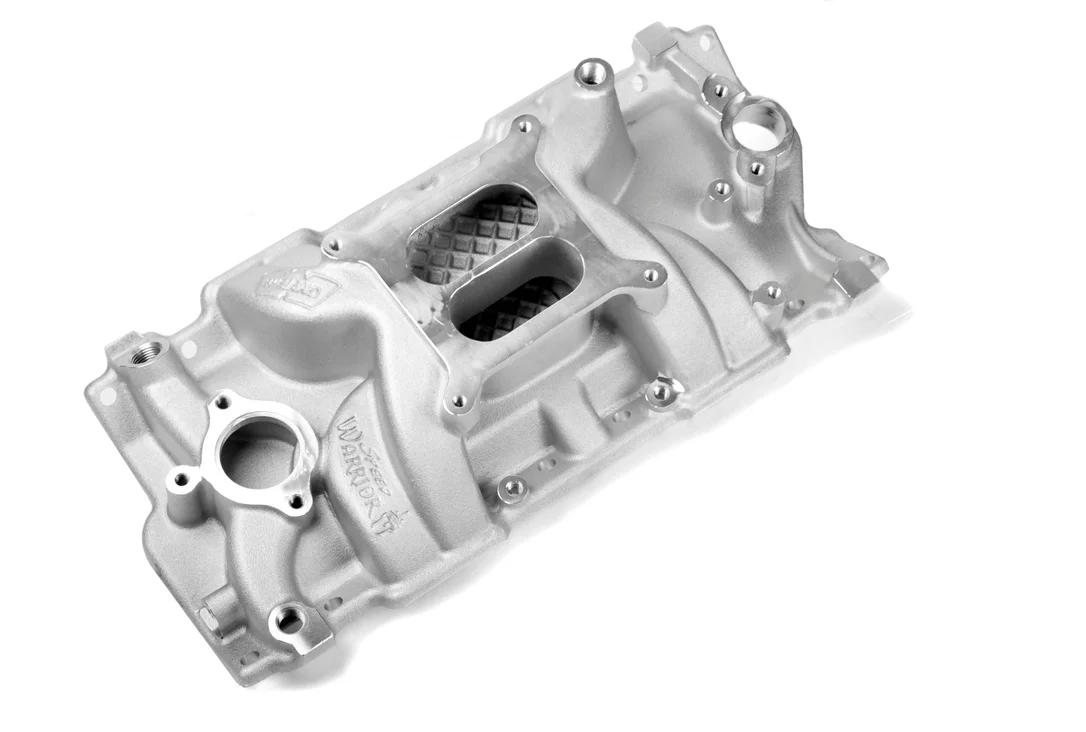

Weiand 8150 Weiand Speed Warrior Intake Manifold – Chevy Small Block V8

Description

Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads The Weiand Speed Warrior Intake Manifold features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake manifold perfect for your street and strip hot rod!

• Precision CNC machining
• Port Size: 1.92” height, 1.16″ width
• Satin (as cast) finish for and even surface texture
• Power band: 1500-6700 RPM
• Square Bore Carburetor Flange
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• Height: Front 4.19″, Rear 5.27″
• High Rise/Dual Plane Design

Information:

Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket – Mr Gasket #’s 5821 or 101G Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16″. To the bottom of the lower plenum is 4-1/16″.

Application Summary:
