Sniper Motorsports 820111-1 Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS1/LS2/LS6

Description

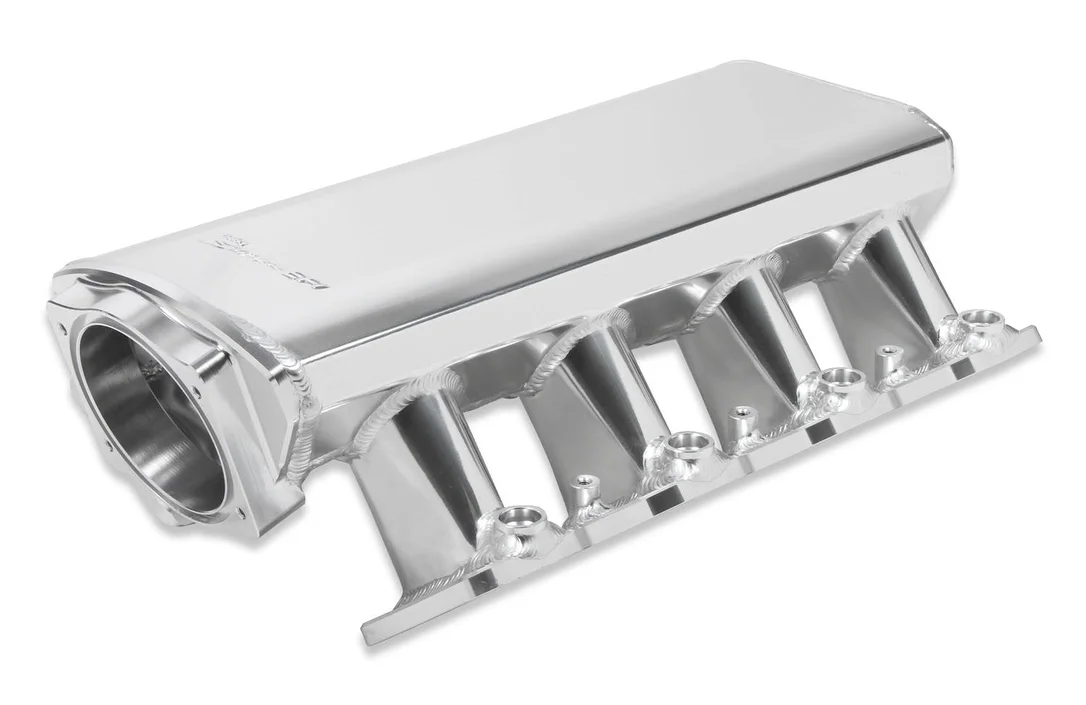

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile- Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Provision for MAP sensor located on rear of plenum
• 100% TIG welded for strength and durability
• The Sniper intake will only accept EV1 style injectors.
• Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
• 3mm (1/8″) thick T6061 sheet aluminum construction for maximum durability
• Silver finish creates high impact under-hood styling
• Product includes all gaskets and hardware for a hassle-free installation
• 102mm throttle bore opening for increased air flow
• Includes 3/8″ Fuel rail kits (Sniper logo laser engraved)

Information:

*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
