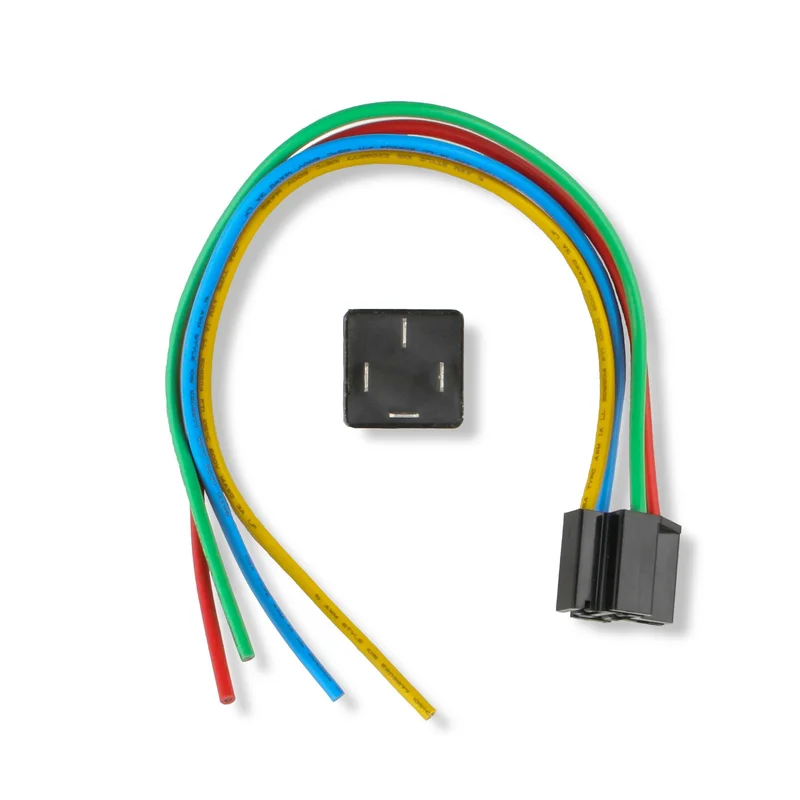

MSD Performance 89612 MSD Solid State N/O Relay w/Socket Harness

Description

The SPST Normally Open Relay is rated at 20 amps continuous, supplied with Socket Harness. MSD’s Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11″ long leads w/ heavy-duty 14-gauge wire.

• Continuous Load – 20Amp
• Max Coil Voltage 16-Volts
• Pigtail harness 14 AWG wires, 11” Long
• Max Inrush Load – Overload Protected at 80A
• Nominal Voltage 12-Volts
• SPST Normally Open
• Mini Solid State Relay
