Description

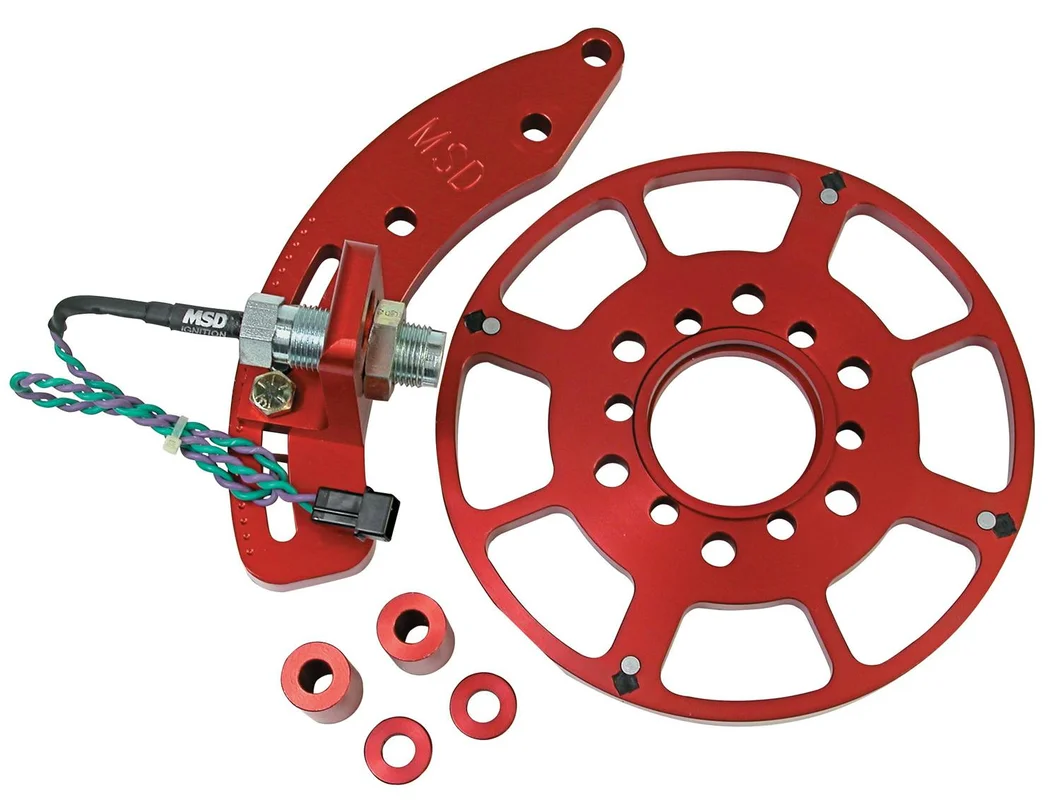

Crank trigger kit for use with MSD 6/7/8-Series Ignition – Red The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This “flying magnet” design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver’s side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25″ motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.
- Kits feature special brackets and mounting hardware for a variety of engines.
- The non-magnetic pickup cannot be false triggered.
- Powerful magnets are embedded in a billet aluminum trigger wheel.
- Absolutely the most accurate way to trigger the ignition.
Application Summary:
| Year | Make/Model |
|---|---|
| 1974-1980 | Pontiac Bonneville |
| 1974-1980 | Pontiac Catalina |
| 1974-1981 | Pontiac Firebird |
| 1974-1975 | Pontiac Grand Am |
| 1978-1980 | Pontiac Grand Am |
| 1975-1977 | Pontiac Grand LeMans |
| 1979-1981 | Pontiac Grand LeMans |
| 1974-1980 | Pontiac Grand Prix |
| 1974-1978 | Pontiac Grand Safari |
| 1974-1975 | Pontiac Grandville |
| 1973-1977 | Pontiac LeMans |
| 1979-1981 | Pontiac LeMans |
| 1974-1975 | Pontiac Ventura |
| 1977 | Pontiac Ventura |
