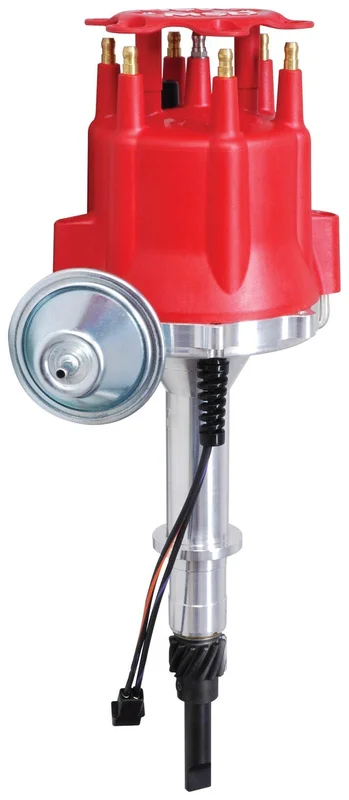

MSD Performance 8516 AMC Jeep 232-258 Distributor

Description

Under the high-quality terminal cap of each distributor is MSD’s race-proven magnetic pick-up. Both distributors are supplied with a high-quality cap, rotor, and gear. There is even a vacuum advance canister for street cruising economy!

• CARB E.O. Approved
• Designed for street/performance use with a mechanical and vacuum advance
• Must be used with an MSD Ignition Control
• CNC machined billet aluminum housing and billet aluminum base
• Vacuum advance canister for improved economy (can be locked out)
• Nylon pads ensure smooth operation of the advance weights
• Supplied with a socket style distributor cap and rotor
• Mechanical advance assembly can be locked out for crank trigger systems
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Advance weight pins are staked and tig welded to the plate
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing

Application Summary:
