Description

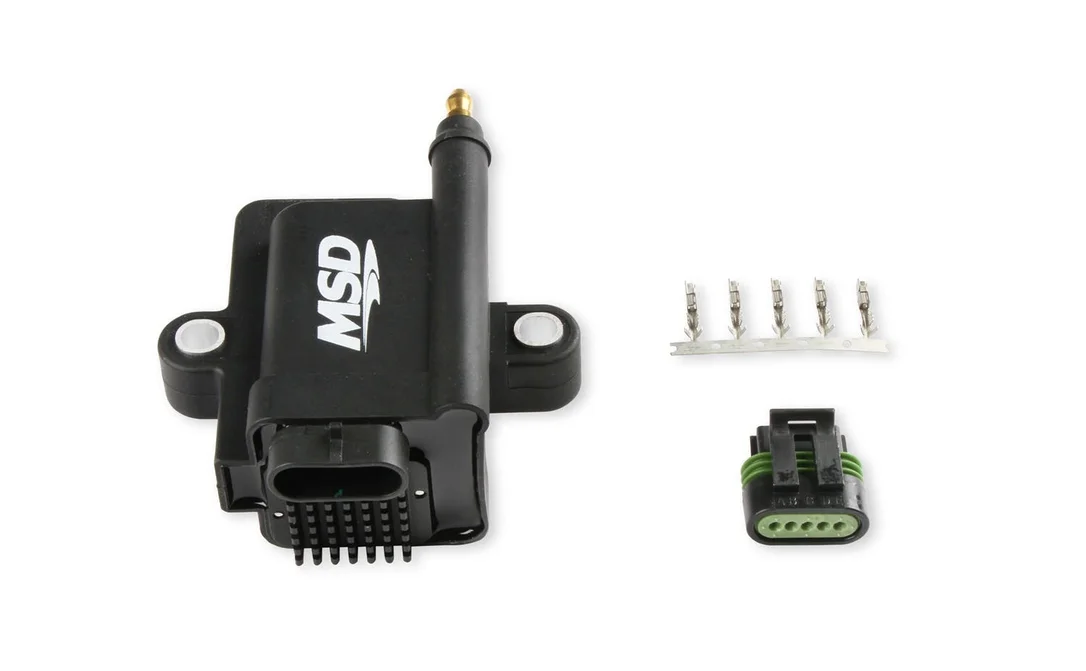

Universal – Use with Holley or MSD EFI Systems Unique elongated mounting holes accommodate IGN-1A mounting brackets, which allow it to bolt in place of an LS coil with 72mm bolt spacing. The MSD Smart Coil will bolt right onto Holley LS cast aluminum valve covers for a super clean look. Available in red or black, there’s a set ready for your build.
- Maximum operating voltage of 17 volts – for compatibility with both 12 volt and 16 volt electrical systems found in many performance/race applications
- Built-in ignitor for compatibility with Holley EFI and many other aftermarket ECU’s
- Low current draw means less demand on the electrical and charging system
- Elongated mounting holes to allow direct replacement of IGN-1A coils and will bolt in place of factory LS 1/2/3/6/7 coils with 72mm bolt spacing
- Same wiring pinout as other IGN-1A coils for easy plugin upgrades
- More spark energy than any other IGN-1A smart coil on the market for maximum fuel burn during combustion sequence
- Direct bolt-on to Holley cast aluminum LS valve covers with 72mm bolt spacing
Information:
The supplied connectors and pins are “Pull to Seat ” This means that you need to insert the wire through the connector from the back, crimp the pin and pull it back into the connector for assembly. Always use proper crimping tools to ensure a proper connection.
