Description

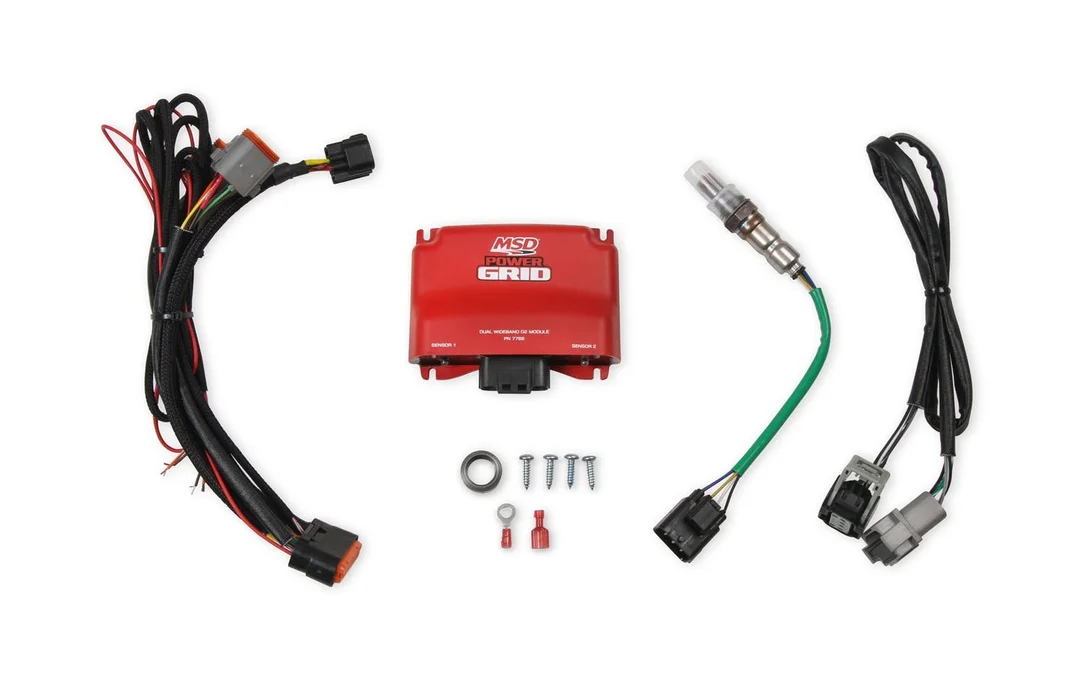

A dual channel air-fuel ratio (AFR) system designed to interface with the Power Grid (PN 7730) to monitor and record the AFR of internal combustion engines. The Dual Wide-Band O2 sensor module is capable of measuring AFR as low as λ = 0.5 (7.35:1 Gasoline AFR equivalent). The AFR range is configurable using the MSDView software in conjunction with the Power Grid Controller (PN 7730). Excellent range of the NTK sensor gives this unit the ability to accurately monitor AFR’s even on alcohol cars.
- Can be expanded to operate with a second sensor MSD PN 2268
- LEDs to monitor system operation and health
- No setup or calibration required (Free Air Calibration is optional for added precision)
- Works seamlessly with additional MSD Wide-Band O2 Sensor Modules
- Back Pressure Compensated AFR’s when used with the optional Exhaust Pressure module
- Plug and Play Power Grid module
- High speed data acquisition when used with the Power Grid Controller (PN 7730)
- Fully potted and sealed unit with Automotive-Grade connectors
- 0.5-4.5V Analog Output Voltage for a gauge or data acquisition
Information:
MSD Power Grid (PN 7730) and Power Grid Hub (PN 7740) are required.
Application Summary:
| Year | Make/Model |
|---|---|
| Wide | Band O2 for Power Grid |
