Description

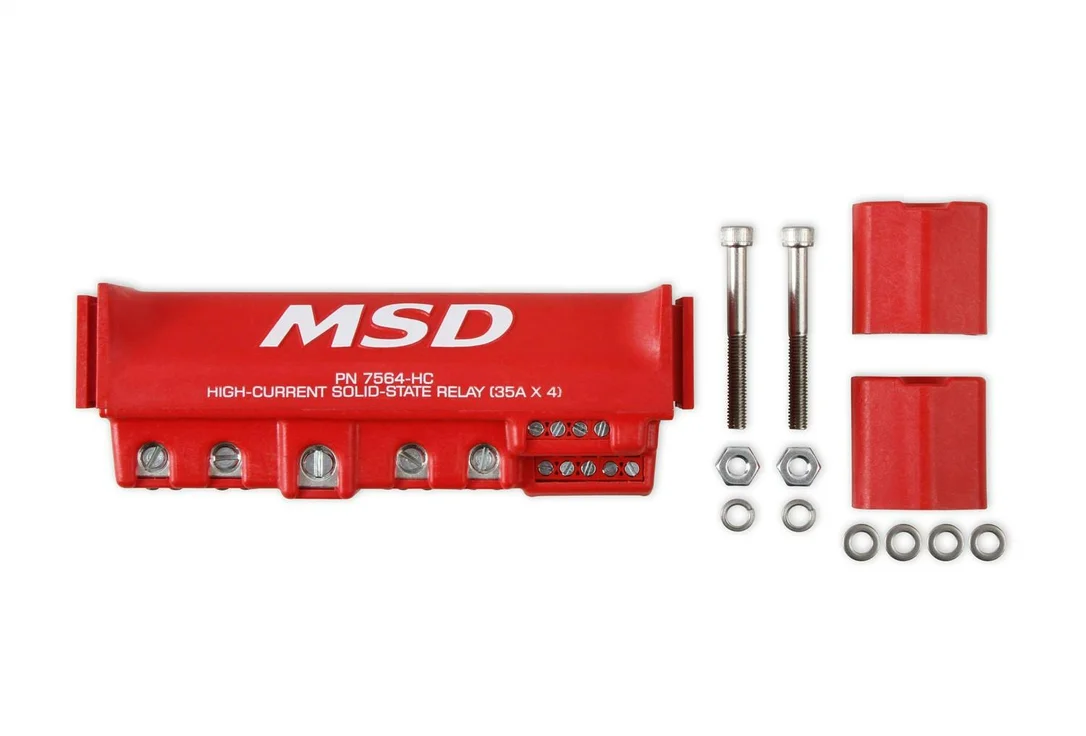

High-Current Solid-State Relay 35 Amp per channel up to 140 Amp continuous LED status indicators ensure proper wiring and operation of each channel. Should a problem arise, the relay block has built-in automatic over-temp, short circuit, and overload protection, as well as a channel reset. The solid-state high current relay can easily be mounted using the supplied hardware and mounting tabs that can be rotated 90° to accommodate various mounting locations. It’s compact and clean design will make your wiring project a breeze.
- Multiple mounting options
- Single wire activation by switching power or ground
- Channels can be run in parallel for devices requiring more than 35 Amp single-channel rating
- A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%.
- Diagnostic LED’s and status indicators
- Over-temp, short circuit and overload protection
- 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
- Combined total continuous current rating of 140 amps
- Clean, easy install with minimum wiring
- Operates from 7-Volts to 20-Volt supply
- Available in Red or Black
Information:
* Amperage rating is per channel *Recommended Wire Gauge: Main Input BATT + – 2 AWG Channel 1-4 Outputs – 8 AWG 12 Volt and Ground Activation Wires – 18-22 AWG
