Description

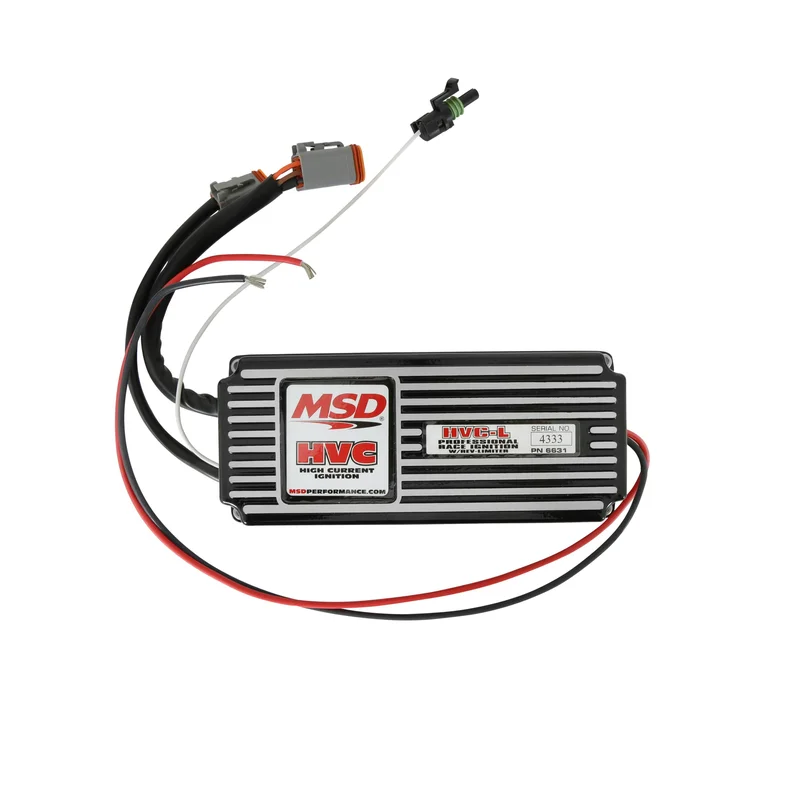

For use in Circle Track and Professional Racing, with Fast Rev Limiter Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it’s all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
- 150 millijoules per spark up to 15,000 RPM
- 15,000 RPM with 14.4 Volts
- Multiple sparks for 20 degrees of crankshaft rotation
- Includes built-in Fast rev limiter
- 12-18 Volts, Negative Ground
- Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
- 550 primary voltage output to coil
- Built-in reverse polarity protection circuit
- Must be used with HVC Coil PN 8250
- Accepts breaker points, amplifier and magnetic pickup trigger inputs
- 6-pin Weathertight connector, mandatory for NASCAR use
- No CARB Exemption Order Number
Information:
Designed for professional racing applications that demand high rpm for long periods of time
