Description

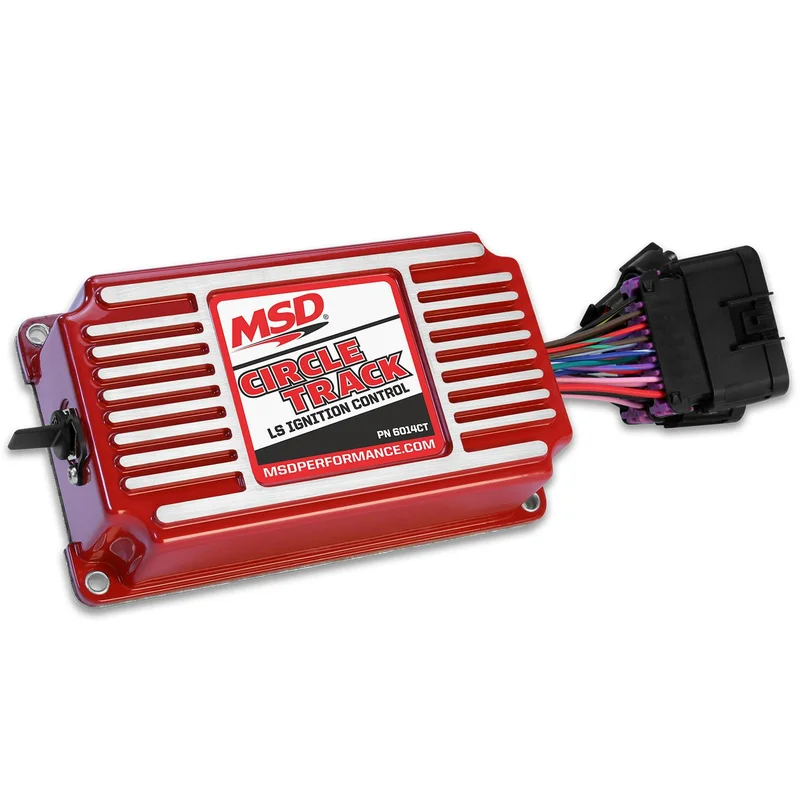

As LS engines make their way onto the race track MSD is ready with the Circle Track LS Ignition Control. CT525 crate engines and built LS mills alike need a way to control 8 coils, RPM and timing. The 6014CT makes this easy with factory connectors that plug directly into the LS cam sensor, crank sensor and coils. If running a CT525 a preset timing curve and rev limiter setup is preprogrammed.
- Will run 24x 1x, 58x 1x and 58x 4x crank / cam sensor combinations
- Preprogrammed to run the GM CT525 crate engine out of the box
- Laptop programmable RPM limit, timing curve and coil selection for custom tuning
- Steady, accurate timing control
- Direct plug-in to factory GM LS sensors and coils
- Auto detects coils, cam sensor and crank sensor
- Dedicated plug for Tech Official
- Self-powered with USB for laptop programming
Application Summary:
| Year | Make/Model |
|---|---|
| 2004-2005 | Cadillac CTS |
| 1998-2002 | Chevrolet Camaro |
| 1997-2004 | Chevrolet Corvette |
| 1998-2002 | Pontiac Firebird |
| 2004 | Pontiac GTO |
