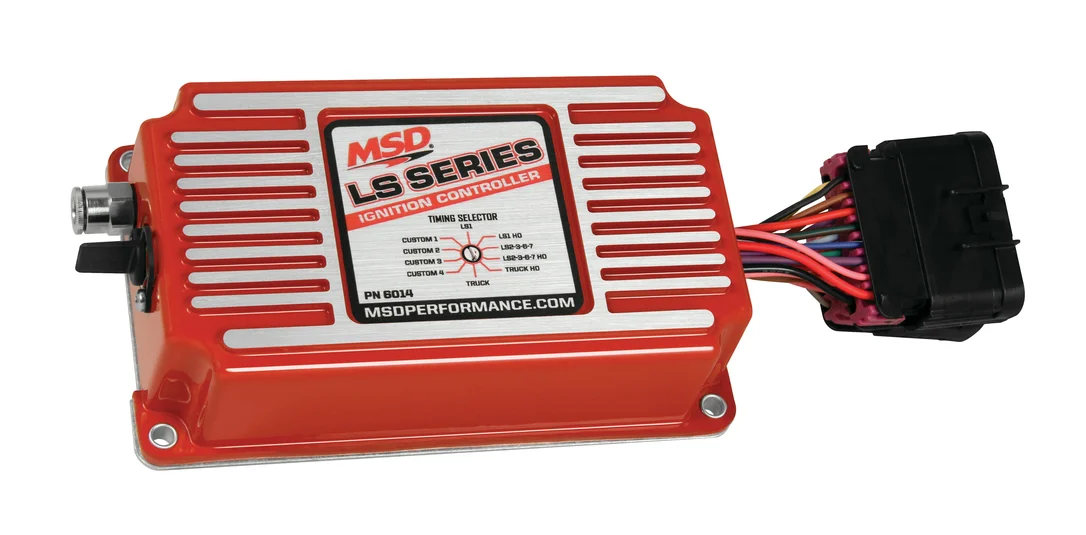

MSD Performance 6014 MSD LS Ignition Control – Red

Description

24x/1x and 58x/4x Crank/Cam LS Configurations 8MB of internal data logging is also included so you can set up, record, and review passes at the track.

• Optional coolant temperature sensor input
• Rotary selector switch allows timing changes on the fly
• Nitrous and boost compatible
• Programmable step retard
• Fully Sealed direct plugin connectors
• Launch retard
• High speed data acquisition
• Launch and max rev limiters
• Fits most LS Engines
• Six preprogrammed timing tables for easy set-up
• Idle timing control
• No PC required for basic functionality
• Individual cylinder timing
• Compatible with all MSD, Accel and GM LS coils

Information:

1. Can be installed on both 24x and 58x crank trigger engines 2. Use on carbureted or fuel injected engines 3. Does not control fuel 4. PN 6014 will replace PN 6010 and PN 6012 5. Optional coolant temperature sensor GM PN 12608814

Application Summary:
