Description

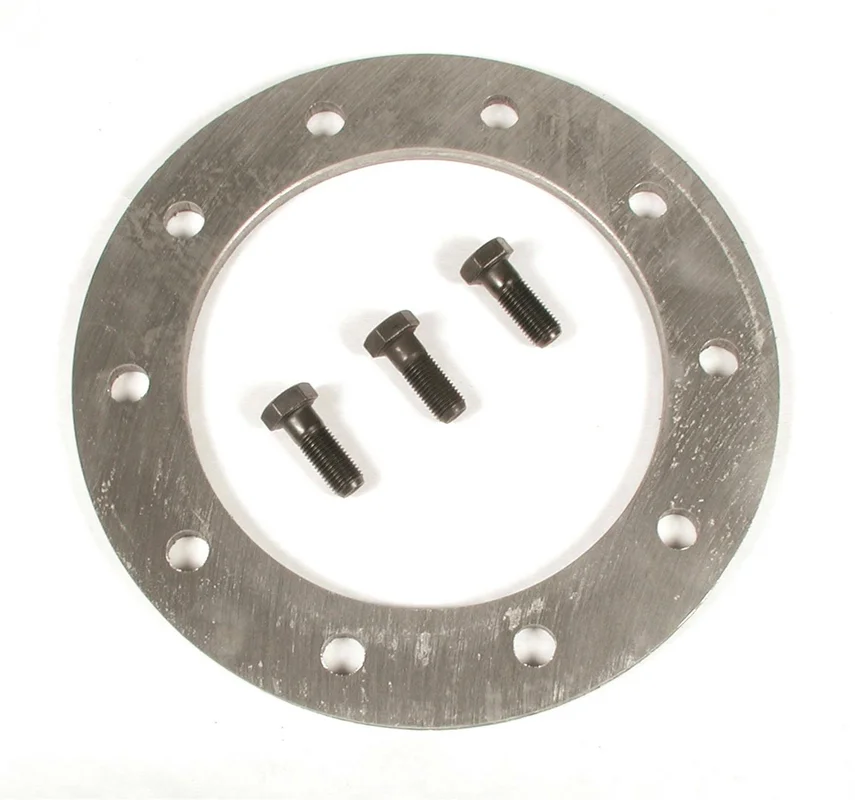

Fits Chevrolet 1965-1972 12-Bolt 8.875 Inch Rear End *This spacer should only be used when using the Series Four Gearset on a Series Three Carrier. See image 2 for more information on the differences between the Series. The thickness of this spacer, .305″-.315″, coincides with the difference between the series 3 and 4 Carriers. The Series 2 Carrier, being only a little over 1/2 inch thick at the ring gear flange, is not suitable for mid to high HP with slicks.
- Includes (12) 3/8″-24 x 1-1/8″ Long Bolts
- High Quality Grade-8 Bolts w/ Black Oxide Coating
- Ring Gear Spacer Thickness .305″-.315″ – High Carbon Steel – Blanchard Ground to Ensure Parallel Alighnment
- Bolt Hole Diameter .437″
- Allows the use of a Series 4 Gearset on a Series 3 Carrier
Information:
*This spacer should only be used when using the Series Four Gearset on a Series Three Carrier. See image 2 for more information on the differences between the Series. The thickness of this spacer, .305″-.315″, coincides with the difference between the series 3 and 4 Carriers. The Series 2 Carrier, being only a little over 1/2 inch thick at the ring gear flange, is not suitable for mid to high HP with slicks.
