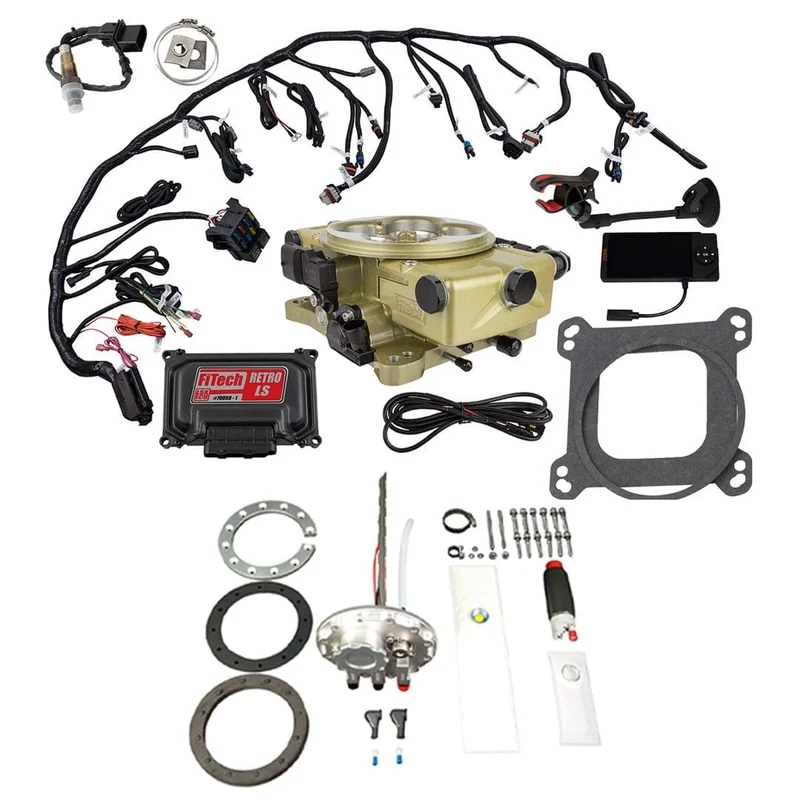

Retro LS 650 HP Classic Gold EFI System With Go Fuel 340 LPH In-Tank Master Kit f you’re looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules. The Go Fuel In-Tank Fuel Pump Returnless Module With 2 Inch Fill single pump model supports up to 800 HP. The Single Pump model is supplied with an efficient 340 LPH pump complemented with an internal regulator to maintain 58-psi so it can be run returnless. The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2” diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump. The fuel pump can be positioned in tanks from 7” – 16” in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels.
- Classic gold finish for that Carburetor look with the drivability of EFI.
- Virtually maintenance free – keeps your vehicle reliable and ready to drive.
- Depth of 7” to 16”
- Innovative Annular discharge design.
- 4 bar (58PSI) regulator
- Universal fit
- 340 LPH
- Fits most EFI ready tanks
- AN-6 pressure port
- Low-profile design
- 2” fuel fill
- 1 BAR MAP sensor, TPS, and IAC sensor integrated onto the throttle body.
- Flow matched 80 lbs injectors.
- Semi sequential fuel and full spark control.
- Fits V8 engines from 250-650 horsepower.
- Bosch wide band controlled.
- Trouble-free performance with today’s fuels – put an end to vapor lock and fuel varnish problems!
- 24x and 58x crank and cam compatible.
- 4150 style 4BBL mounting flange – Bolts on in place of carburetor.
- Fully self-tuning ECU – No laptop required.
- Custom cam friendly.
- Includes full color, touch screen LCD for both basic and advanced tuning options.
- Knock sensor control.
- Transmission control suitable for 4L60, 4L65, 4L80 GM transmissions.
- Connections for Ford, GM TH350, 700R4 and other transmission linkages.
- Easy plug and play harnesses with minimal connections.
