Fabtech K20461DL 10″ Radius Arm System with Dirt Logic Shocks

Description

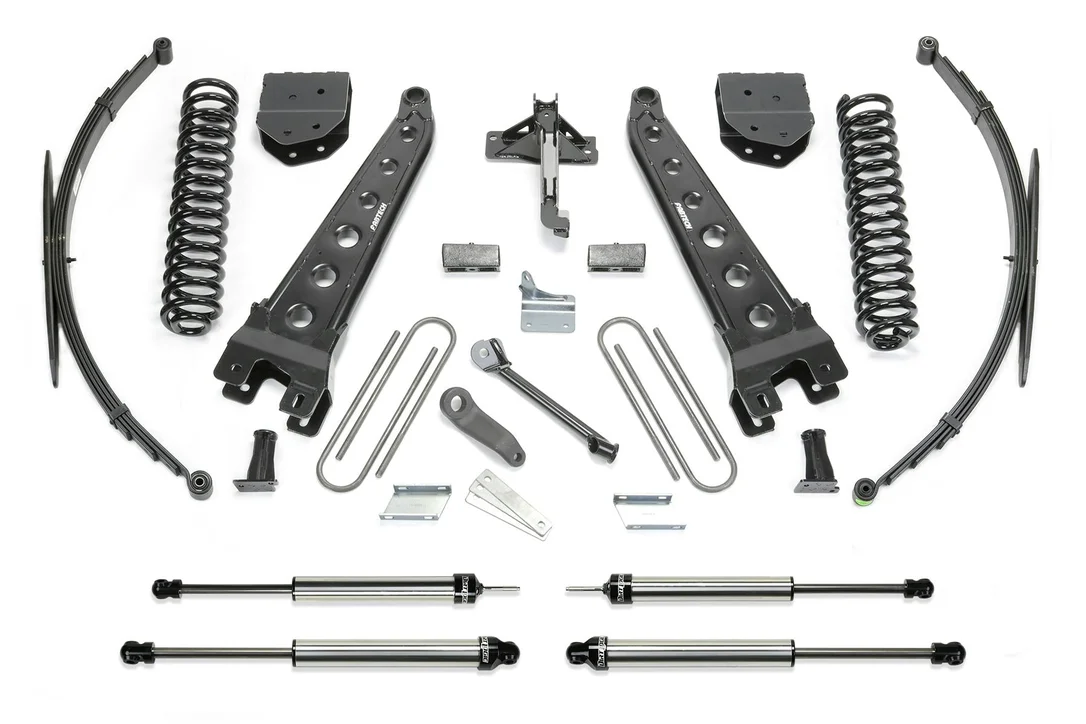

Radius Arm Lift System; w/DLSS Shocks; 10 in. Lift; Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

• Unsurpassed Strength And Performance | Patent Pending Radius Arms | Fully Tubular Structure | Dimple Die Side Plates | Adjustable Alignment Cam Allows Caster Adjustment
• Patent Pending Radius Arms
• Fully Tubular Structure
• Dimple Die Side Plates
• Adjustable Alignment Cam Allows Caster Adjustment

Information:

TIRE SIZE – 40/12.50R17 WHEEL – 17X9 W/4 5/8″ BS W/MINOR TRIMMING; TIRE SIZE – 40/13.50R20 WHEEL – 20X10 W/4 1/2″ BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.; 29. REAR SPRINGS MAY REDUCE LOAD CARRYING CAPACITY.
