Description

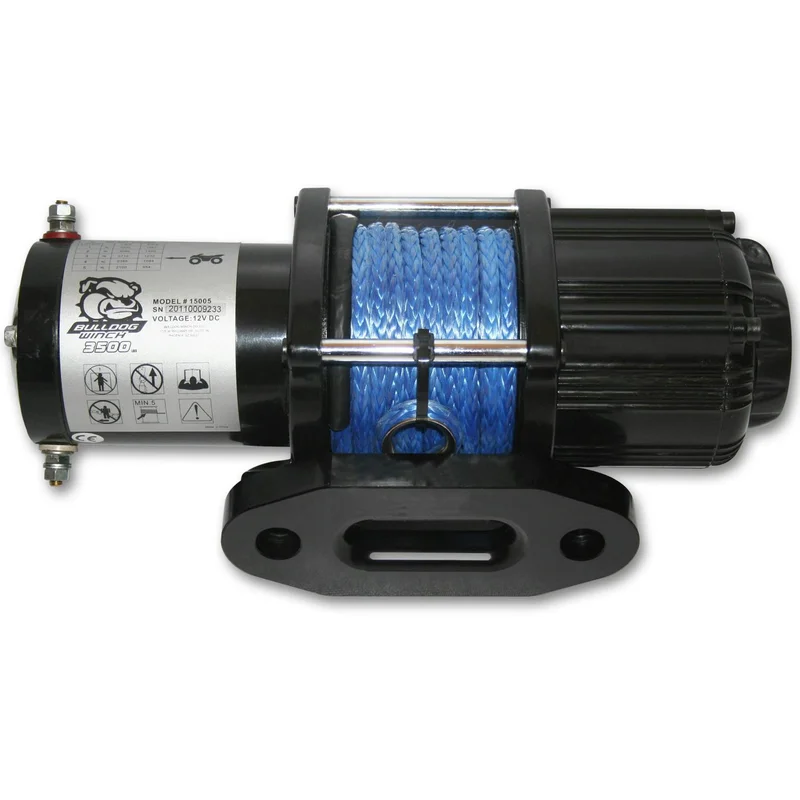

Bulldog 3500lb UTV Winch, Syn Rope, Alu Hse Frld, Contactor, 50ft rope, Mnt Chnl 3500 LB UTV Winch 50 Ft synthetic rope Two Switches Mounting Channel Roller Fairlead Bulldog Winch. Standard Size Drum with 50ft of rope. 4.9 x 3 inch 4-Bolt Mounting Pattern. Popular size for ATV’s and Side-by-Sides. Includes 2 Different switches. Includes Basic L-Mounting Channel.
- 3,500 LB Pull Capacity
- Freespooling Clutch
- Brake is Automatic Load Hold Mechanical in Drum
- 13.6(L) x 4.5(W) x 4.5(H) (345mm x 114mm x 114mm) Overall Dimensions
- 2 x 2.9 (51mm x 73.7mm) Drum Diameter
- 4-Bolt 4.9 X 3(124mm X 76mm) Mounting Bolt Pattern
- 2 Year Limited Warranty
- 4.8mm x 50′ Synthetic Rope
- 1.6 HP Permanent Magnet Motor
- Switch is 250A Sealed contactor
- First Controller is Handlebar Mounted mini rocker switch included
- Second Controller is Hand Held Controller with Female Plug and Wiring Harness
- Optional-Wireless Controller 20156 Available
- Battery Leads are 6 GA
- 3 stage Planetary Gear Train
- 136:1 Gear Ratio
