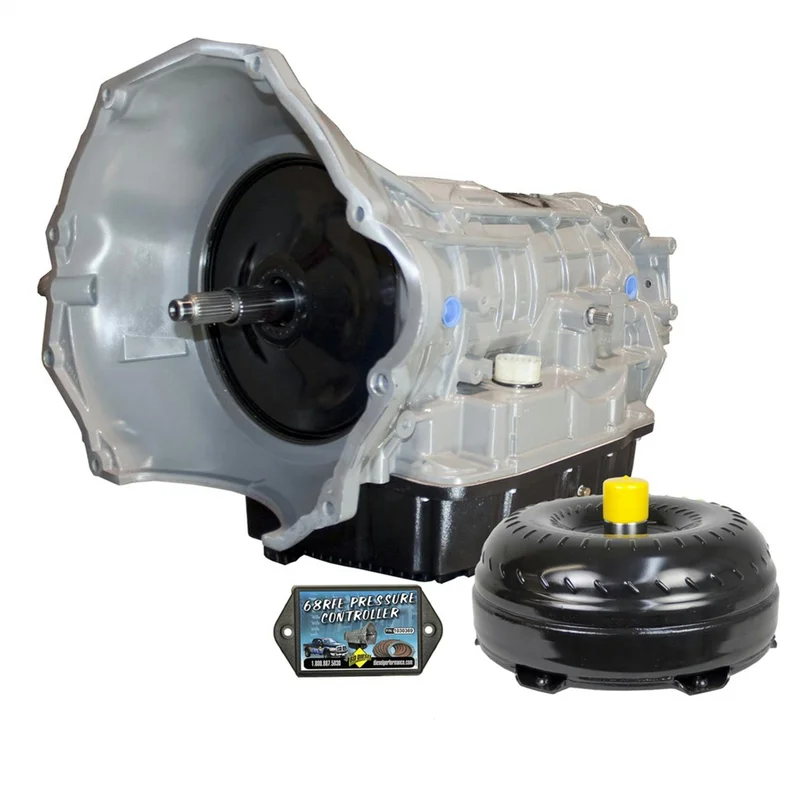

BD Diesel Performance 1064264SS BD TowMaster Dodge 68RFE Trans & Converter Package 2007.5-2018 4wd

Description

BD TowMaster Dodge 68RFE Transmission & Converter Package – 2007.5-2018 4wd When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD’s own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel’s power and torque demands, the clear choice is BD.

• TRANSMISSION:
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
• Great for street and towing applications
• PROFORCE CONVERTER:
• Good for 550 flywheel HP
• Ideal replacement for stock torque converter
• High performance Enhanced stall stator
• Lower rpm response than the stock converter
• Hard anodized valve body and new solenoid pack installed in every unit
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• Heavy duty cam & roller design low reverse one way clutch
• Damper springs replaced
• 11.625 inch dual-clutch
• Billet forged front cover with thicker walls and stronger mounting pads
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• New 4C billet spring retainer
• BD reinforced accumulator plate
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Over Drive clutches 33% increase & 2C clutches 33% increase
• Custom Big Stack overdrive shaft
• TCC limit valve machined and sleeved to address high wear area with in pump

Application Summary:
